One connected system, from the machine to the fix.
A gateway that pulls the data, a platform that turns it into a digital twin, and AI that tells your team what to do next.

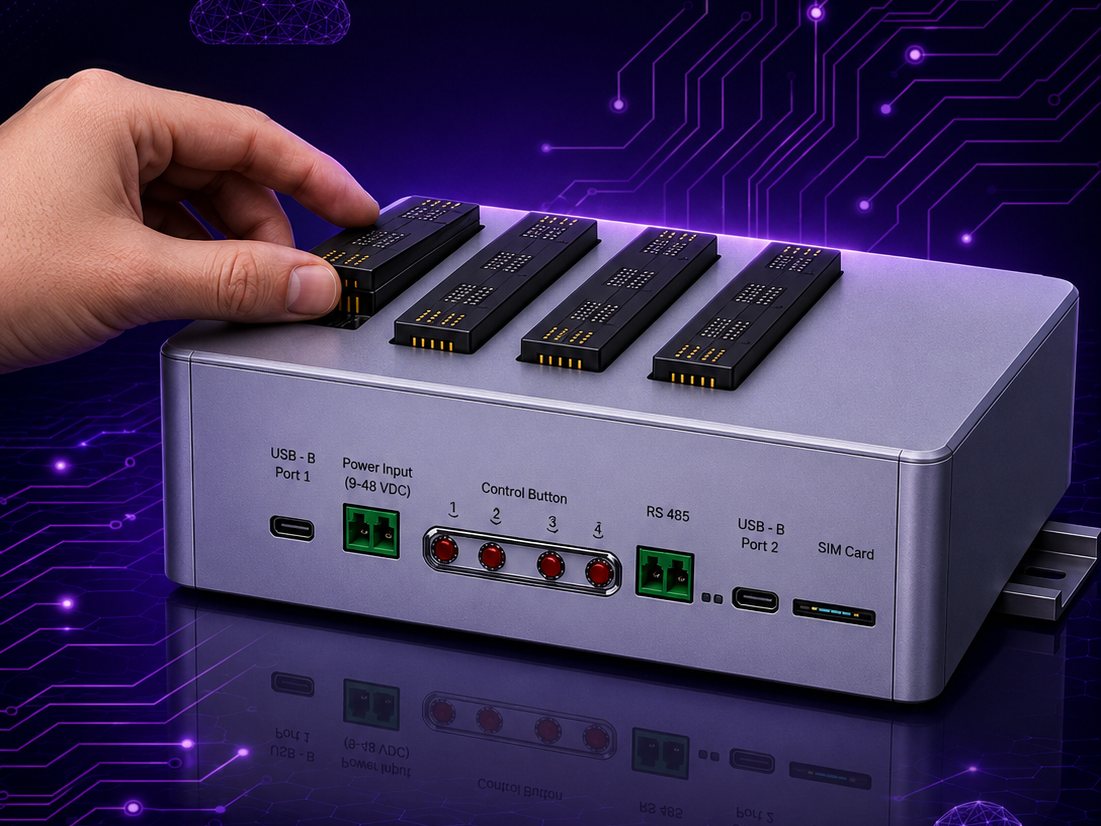

Bharat Gateway Pro
Our dual-processor gateway for machines with a lot to say. It connects to your machine's PLCs, sensors, and controllers and sends live data to HiveProvisioner — with plug-in I/O cards so one gateway fits many machine types. Live in under 10 minutes, no engineer needed on-site.
| Connectivity | LTE Cat 1 with 2G fallback, GNSS, Wi-Fi 2.4 GHz, Bluetooth LE 5 |
| Processing | Dual-MCU: Quectel EC200U cellular module + ESP32-S3 co-processor |
| Machine Interfaces | RS-485 (Modbus RTU), 18 digital inputs, 12 analogue inputs |
| Expansion | Plug-in I/O and ADC cards, plus a card slot for custom SPI / I2C / UART links |
| Data Logging | 128 MB on-board flash for buffering and remote firmware updates |
| Data Security | TLS-secured MQTT, HTTPS, and TCP |

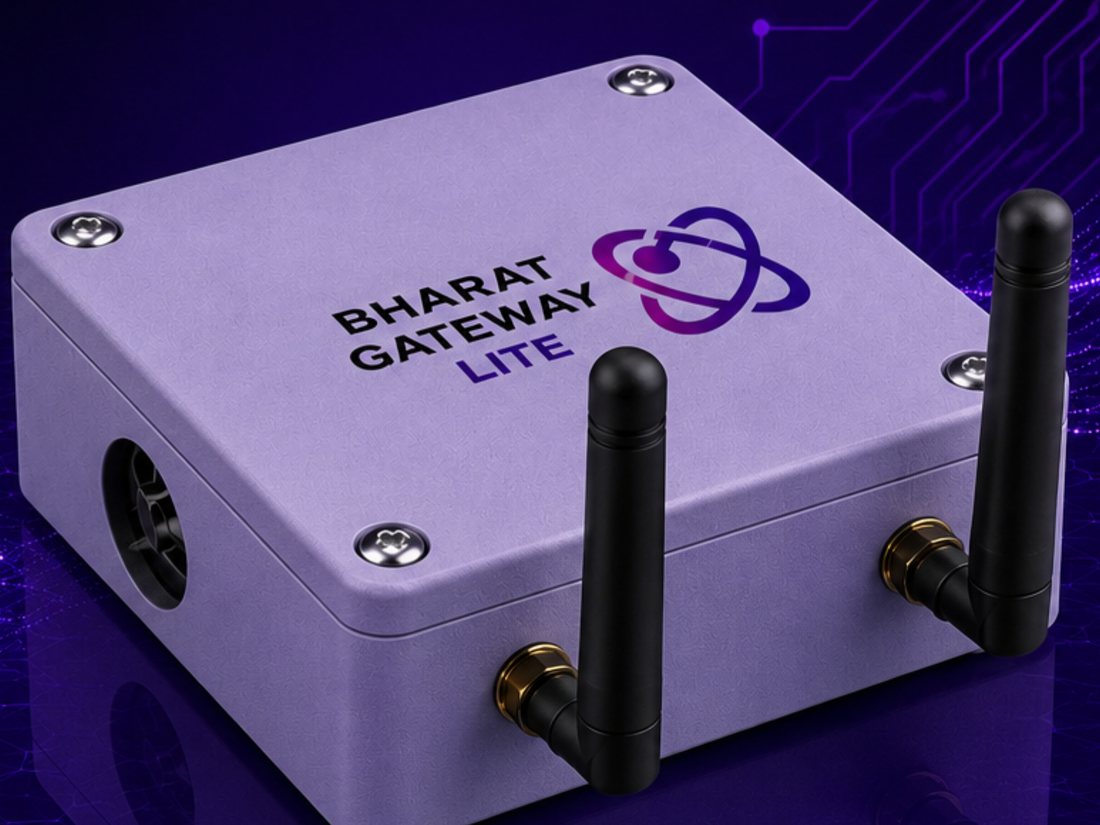

Bharat Gateway Lite
A compact, lower-cost gateway for simpler machines. One processor handles cellular, positioning, and field I/O, so it's ideal for remote monitoring, asset tracking, and lightweight automation. Fully managed from HiveProvisioner, including remote firmware updates.
| Connectivity | LTE Cat 1 with 2G fallback, GNSS, Wi-Fi scan, Bluetooth LE 5 |
| Processing | Single-MCU: Quectel EC200U cellular module |
| Machine Interfaces | RS-485 (Modbus RTU), 7 digital I/O, 3 analogue inputs (0–5 V) |
| Power | 9–24 V DC with surge and reverse-polarity protection |
| Size & Mounting | 106 × 88 × 54 mm, approx. 100 g, DIN-rail mount |
| Data Security | TLS 1.2-secured MQTT and HTTPS |
Pro or Lite?
Both connect to HiveProvisioner and build the same digital twin. Pick by how much your machine needs to tell you.
| Bharat Gateway Pro | Bharat Gateway Lite | |
| Processors | Dual-MCU (EC200U + ESP32-S3) | Single-MCU (EC200U) |
| Digital I/O | 18 inputs | 7 I/O |
| Analogue inputs | 12 | 3 |
| RS-485 / Modbus RTU | Yes | Yes |
| LTE Cat 1 + GNSS | Yes | Yes |
| Wi-Fi / BLE | Full Wi-Fi + BLE 5 | Wi-Fi scan + BLE 5 |
| Plug-in I/O cards | Yes | No |
| On-board flash | 128 MB | Module-internal |
| Best for | Complex machines, many signals, local processing | Simpler machines, monitoring, asset tracking |

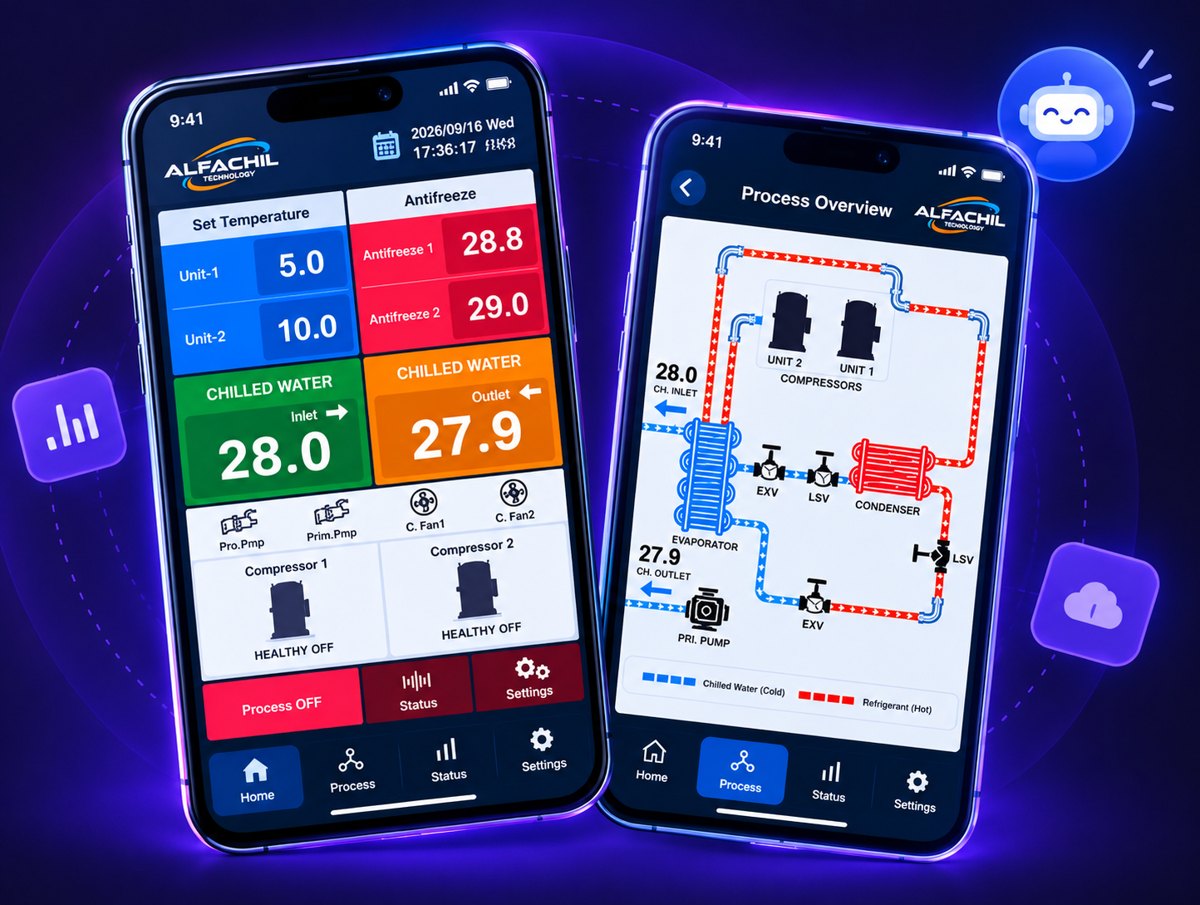

HiveProvisioner
HiveProvisioner is where each machine gets its digital twin. Model the machine's components on the platform, map the gateway's data to them, and every machine shows up live — for you and for your customers.
Answers, not just alerts.
With every machine running as a digital twin, two things work on top of it: an AI agent your engineers can talk to, and maintenance rules that never stop watching.
Agent Neuron
Your service engineers ask Agent Neuron about a machine problem, in real time, right on the platform. It answers from the machine's live data — the likely cause and the fix.
Predictive Maintenance
Predictive-maintenance rules run in the background on every machine and let the customer know what's going wrong — before it turns into a breakdown.
